Color Sorter Machine
The newly developed special color sorter has simple mechanism, stable color separation performance and simple operation. It can be applied to the selection, optimization and intelligent selection of various rice, grains and plastics.
AI technology:
1. Automatically identify the characteristics of materials, match the optimal separation scheme, and reasonably realize the customers' expectation for separation;
2. Provide customers with the best and most economical sorting scheme;
3. Further realize the operation, learning, decision-making and control of color selection, one key start and intelligent sorting.
HD micron camera:
1. Exclusive customized ultra clear CCD sensor technology, combined with high-definition and low distortion industrial lens;
2. It can scan materials more than ten thousand times in a second, with recognition accuracy up to micron level, and can accurately identify tiny and fine lesions;
3. It can recognize 130 million colors, achieving faster (speed), higher (precision), better (take out).
According to the system dynamics, the material is carefully designed to make the light source intelligent control dimming system stable:
The advanced automatic dimming technology can automatically match the best brightness according to the material sorting requirements and the changes of the environment, so as to achieve the best and most stable sorting performance.
Multispectral analysis technology:
By using high definition micro identification technology, intelligent shape selection technology and infrared technology, unqualified materials such as glass, plastic particles, desiccant and gravel can be selected accurately.
Image acquisition system
1. International advanced industry 5400 * 12K full-color high-speed line scanning imaging CCD sensor can provide up to 1944.4 million pixel high-definition images per second. International famous suppliers discuss to build a special lens for color selection to accurately identify 0.04mm2 small lesions, to meet the high-end color selection requirements of abdominal white and core white separation at the same time and separate separation.
2. Image processing system
The advanced multi-mode intelligent and complex algorithm is used to provide a more flexible sorting and combination scheme for rice micro spots, light water yellow, belly white, core white, needle point black head and other heterochromatic particles, with higher color separation accuracy and lower out ratio.
3. Shape selection function
Shape and color work at the same time，sorting big, small, round, and slim
4. Infrared technology
Near infrared imaging system can remove materials of the same color and different materials

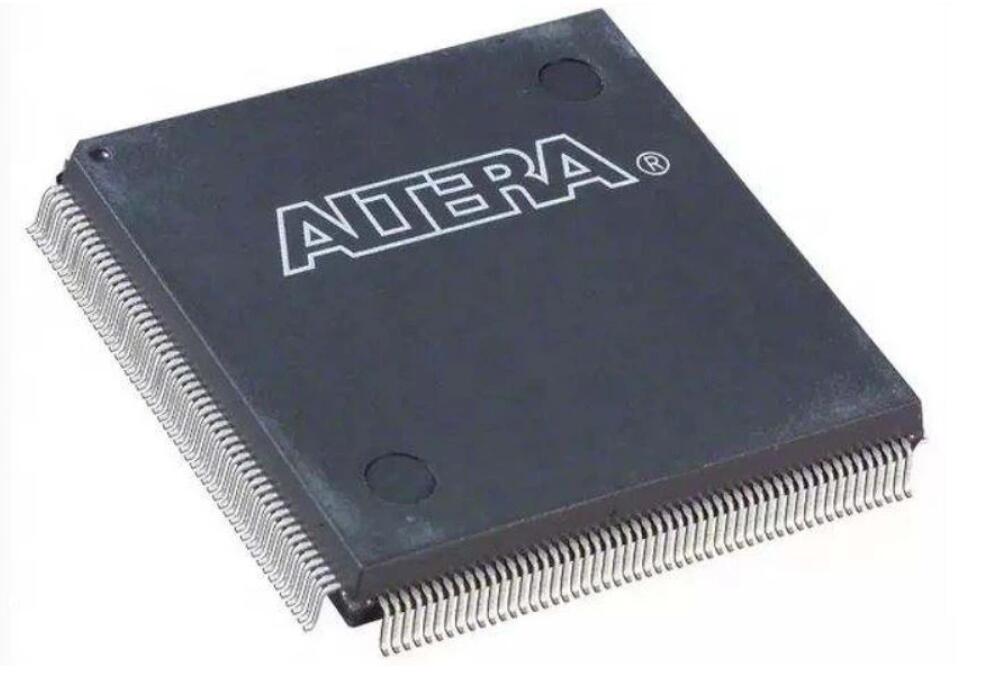

Chip:
Altera's latest generation of 1 million logical units has faster computing speed; FPGA has faster processing speed, greater output, stability and reliability.

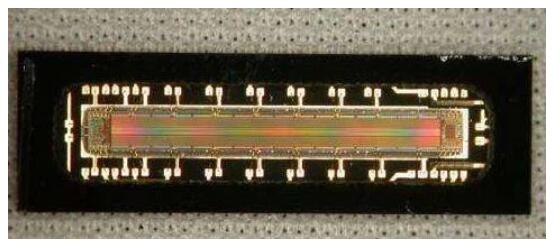

Sensors:
Sensor imported from Toshiba, Japan

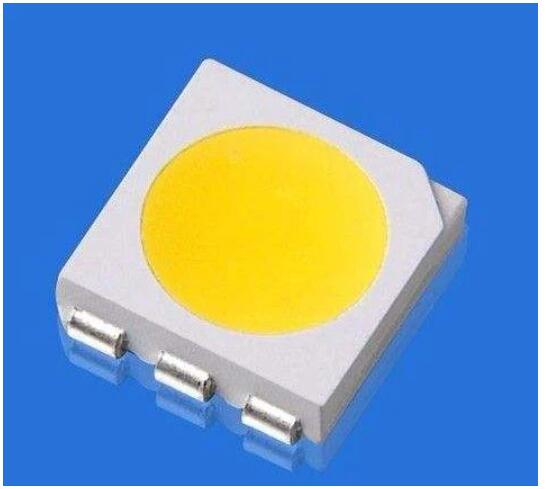

Lamp:
Led uses the combination of OSRAM light chip and precision optics to provide high brightness and high uniformity lighting
camera lens：
Lens of international famous brand, less distortion, restore real color

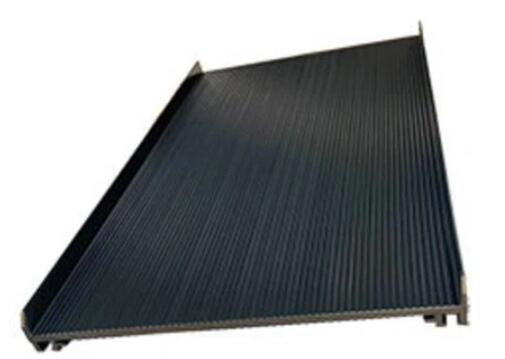

Chute：
With the latest anodizing technology, the chute is smoother and the precision is higher; the super thick anodizing film is durable and wear-resistant.
Intelligent magnetic control high frequency solenoid valve
The self-developed intelligent magnetic control high-frequency solenoid valve of color separation machine creates advanced intelligent lever flexible return technology to replace the traditional air pressure return function, and the air flow is free of internal leakage and leakage; the developed superconducting magnetic application, start-up control and current limiting technology, and the application of new high anti-wear materials to ensure the use of the final matching equipment, create higher output efficiency.
