Rice Sorting Machine
Feature&Advantages
The rice sorting machine uses photoelectric technology to automatically sort out the heterochromatic particles in the rice according to the difference in the optical characteristics of the rice, so as to achieve the effect of improving the quality of the rice and removing impurities.

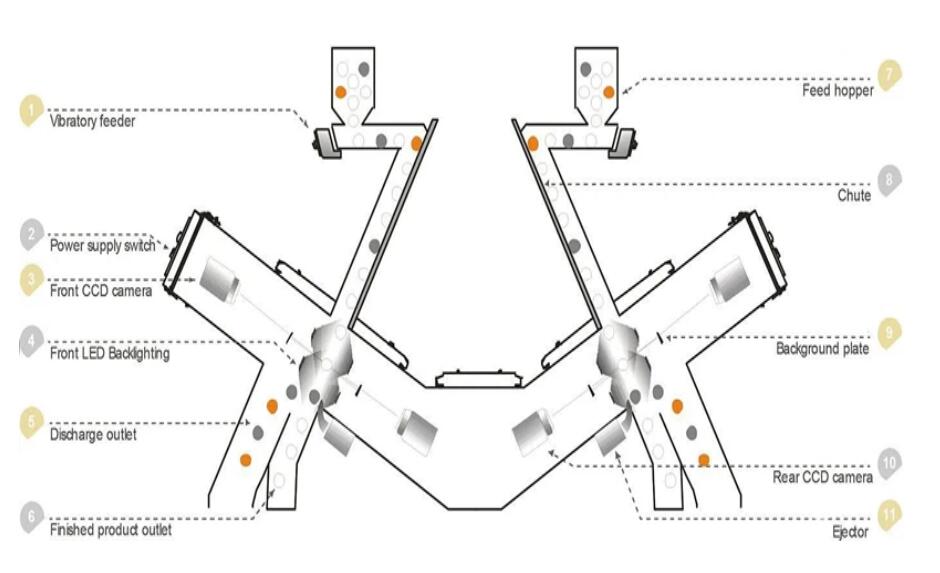

A Rice sorting machine, also named rice color sorter, separates rice grains according to color differences in raw rice arising from anomalies like bits of stone, bad rice, black rice, half-husked rice, etc. A high-resolution CCD optical sensor drives a mechanical sorter to separate different granular materials, automatically Sorting heterochromatic particles out of the batch of raw rice; removing such impurities in this process improves the quality of the rice.
The rice sorting machine adopts 2048 pixel high-speed line scan CCD camera and photo processing technology can process photo parameters ever faster.field bus structure making sure high consistency of signal, stability and simplified outline. capable of detecting minimum area 0.8mm,and by analying finest color difference making perfect sorting possible. both flat type and channels type are available, making it much easier for changing between rice and larger article sorting.
High tech ejector valve with ever longer lifetime, up to one billon times.
Most advanced sorting chamber and special designed CCD sensors developed amplifier with very low noise, up to 163dB.
By removing unwanted materials like yellow pieces, foreign articles etc and improving its quality to bring in profits for production.
The meaning of color selection
Compared with manual selection: labor-saving, time-saving, high efficiency and low processing cost. Improve the quality and economic and social benefits of selected products.
Specifications
| Model | GM192C | GM256C | GM320C | GM384C |
| Output(T/H) | 2.0~4.0 | 2.5~6.0 | 3.5~8.0 | 4.0~9.0 |
| Sorting Accuracy(%) | ≥99% | ≥99% | ≥99% | ≥99% |
| Power(Kw) | 1.8 | 2.0 | 2.4 | 2.6 |
| Voltage/Frenquancy (VAC/HZ) | 220/50 | 220/50 | 220/50 | 220/50 |
| Net Weight(Kg) | 825 | 895 | 975 | 1125 |
|
Dimension (L×W×H/mm） |
1500×1520×2040 | 1740×1520×2040 | 2080×1520×2040 | 2420×1520×2040 |
