Seed Cleaning Plant
Introduction

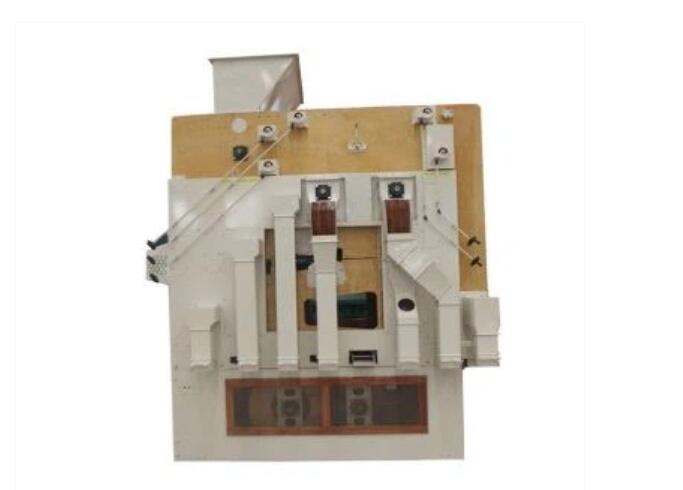

The 5X series Fine Seed Cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks. The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
Features
It has high cleaning rate and it can be widely used for processing wheat, rice, corn, barley, peas and many other seeds also be used for all kinds of grain cleaning.
Specification
|
Model |
5X-5 |
|
Dimension(L×W×H) |
2950×1750×3600 mm |
|
Overall weight |
2400 kg |
|
Rated capacity |
5 t/h |
|
Overall air volume |
8200 m3 |
|
External air blower |
4-72N0-6A, 7.5 kW |
|
Vibration sieve motor(gear motor) |
2.2 kW |
|
Back lifting system motor |
3.0 kW |
|
Feeding motor |
1.5 kW |
|
Total Power |
6.7 kW |
|
Screen Dimension (L×W) |
800×1250 mm |
|
Layers and number |
4 layers,7 pieces |
